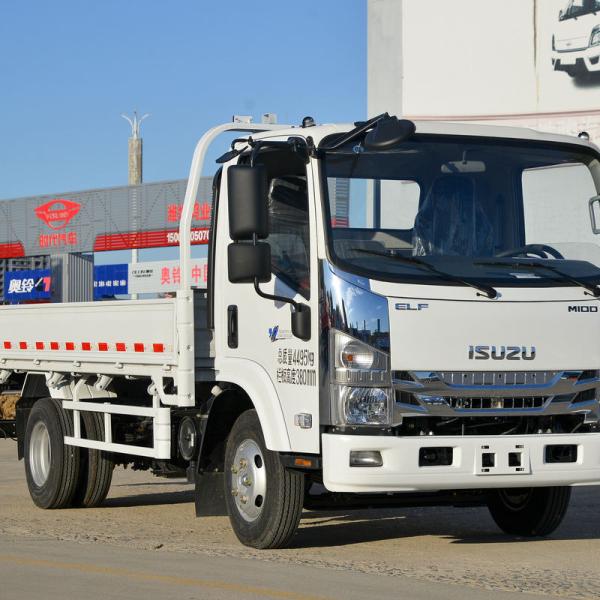

| Announcement Model | QL1043MVHA |
| Type | Truck |
| Drive Configuration | 4×2 |
| Wheelbase | 3360mm |
| Engine | Isuzu 4KK1N6LB (Qingling) |
| Transmission | Isuzu 5-speed Manual Transmission |
| Rear Axle Gear Ratio | 5.571 |
| Overall Dimensions(L×W×H) | 5.995×2.2×2.38m |
| Front Track | 1640mm |
| Rear Track | 1525mm |
| Curb Weight | 2.565t |
| Rated Payload | 1.735t |
| Gross Vehicle Weight | 4.495t |
| Maximum Speed | 105km/h |
| Ton Class | Light Truck |
| Driving License Category | A1,A2,B1,B2,C1 |
| Front Overhang/Rear Overhang | 1.11/1.525m |
| Energy Type | Diesel |
| Number of Cylinders | 4 Cylinders |
| Cylinder Arrangement | In-line |
| Displacement | 2.499L |
| Emission Standard | China National VI Emission Standard |
| Maximum Output Power | 88kW |
| Maximum Horsepower | 120HP |
| Shift Mode | Manual |
| Forward Gear Number | 5 Forward Gears |
| Reverse Gear Number | 1 Reverse Gear |

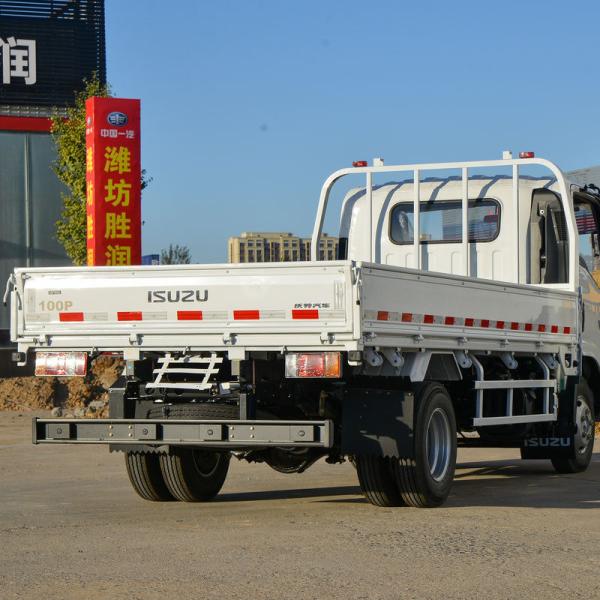

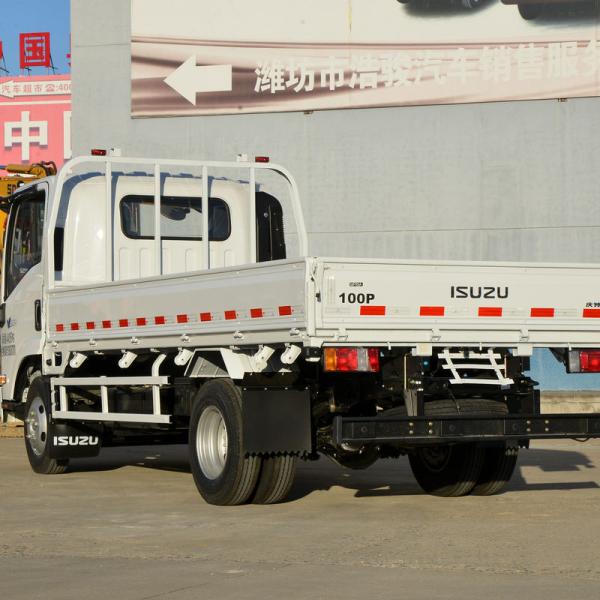

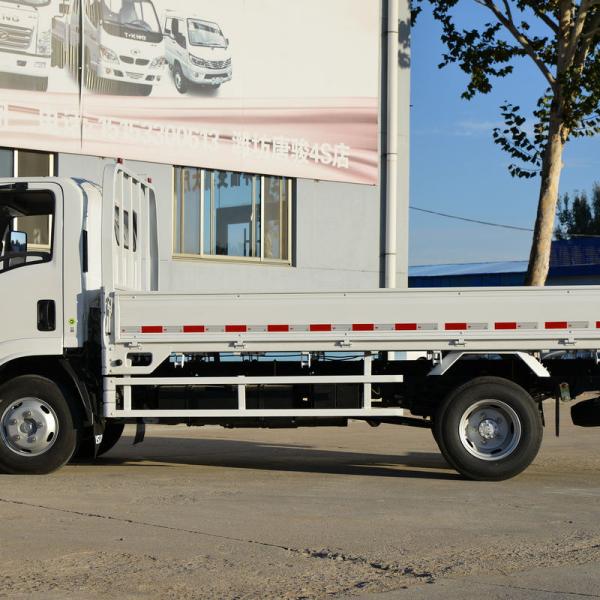

| Cargo Box Type | Stake Body |
| Cargo Box Length | 4.185m |
| Cargo Box Width | 2.1m |
| Cargo Box Height | 0.4/0.38m |
| Cab Width | 1880mm |
| Rated Passenger Capacity | 3 Passengers |
| Row Number of Seats | Single Row |
| Front Axle Permitted Load | 1750kg |
| Rear Axle Permitted Load | 2745kg |
| Gear Ratio | 5.571 |
| Leaf Spring Count | 3/3+2 |

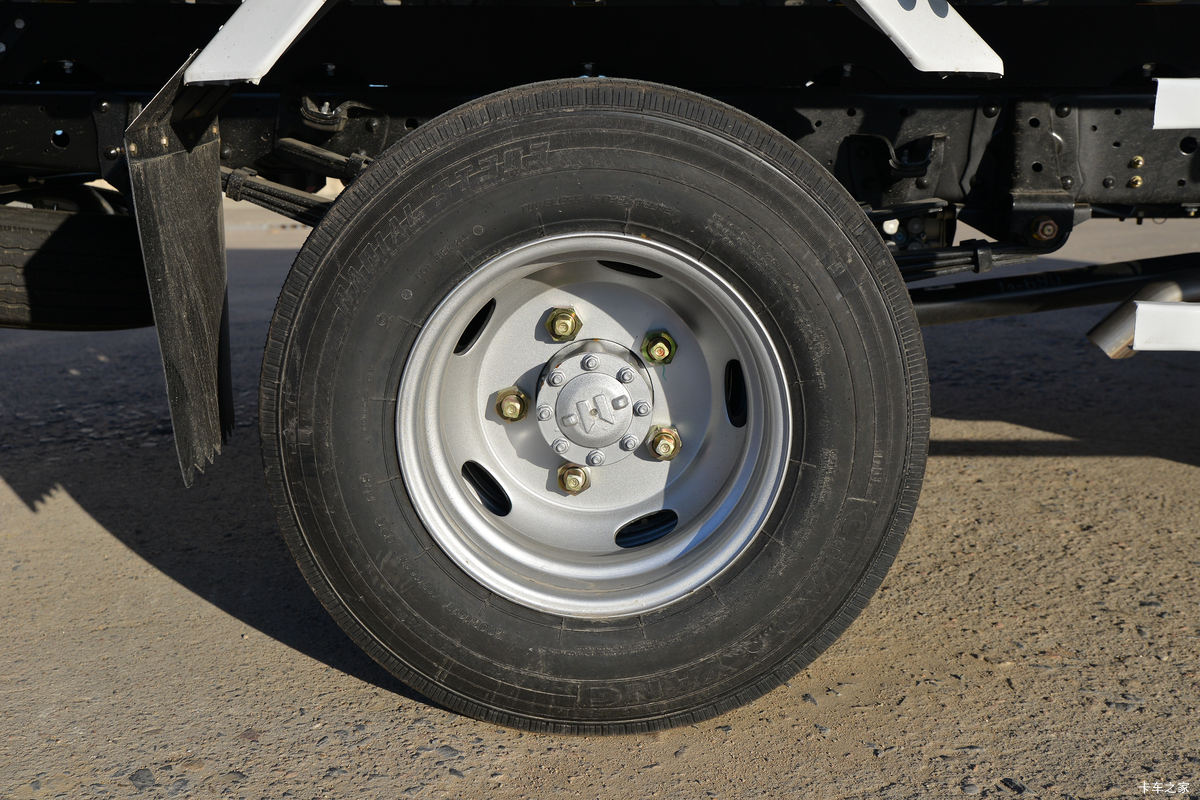

| Tire Specification | 7.00R16LT 8PR |
| Number of Tires | 6 Tires |
